Дренажна мембрана Guttabeta Star

Special dimpled membranes with extremely high pressure stability
Описание на продукта

Заглавие на изображението

Advantages
  • high pressure resistance
  • highly resistant to cracks
  • abrasion resistant
  • free of decay
  • toxicologically harmless
  • no action on drinking water
  • impact resistant, elastic
  • resistant to chemicals
  • impact resistant and fracture resistant
Applikation examples
  • Foundation wall protection
  • Protection of the foundation wall sealing
  • Drainage systems
  • inding layers
  • Floor screed underlayers
  • Component of terrace garden concepts
  • Drainage of cellar walls

Maximum safety

The high pressure stability of the guttabeta® star dimpled membranes can be attributed to the special star-shaped geometry of the studs. This design raises the value of the membrane to more than 50% above that of comparable traditional dimpled membranes. The ridges reinforce the studs and are excellent at diverting pressures. This means that the HDPE material achieves a particularly high mechanical resilience. The well-established physical and chemical properties of HDPE are unaffected by this.

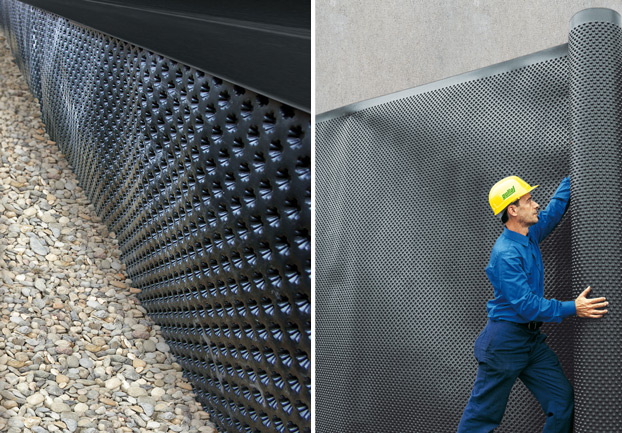

In a vertical installation, the high pressure resistance of the guttabeta® star dimpled membranes makes it possible for them to absorb the ground pressure on the insulation at a much better rate. The load-bearing capacity and resilience of the studs increase in a horizontal installation.

  • Foundation wall protection when sealed with bitumen coating or waterproofing slurries
  • For water-permeable floors
  • Terrace gardens
  • Bedding layers
  • Floor screed underlayers
Технически данни
Material
HDPE (High density polyethylene)
Color
black
Compression restistance
tested according CE standard EN 13967:2012
Stud height
ca. 7 mm
Studs per
1860 piece/m²
Air volume between studs
about 5,0 l/m²
Drainage ability
about 4,6 l/s/m (16600 l/h/m)
Roll sizes in m
1,0 x 20, 1,5 x 20, 2,0 x 20, 2,5 x 20, 3,0 x 20, 4,0 x 20
Temperature reistance
- 40°C up to + 80°C (protect from UV-radiation)
Pallet units
1.0 m: 24 rolls
1.5 to 2.0 m: 12 rolls
2.5 to 4.0 m: 18 rolls

Technical changes reserved, measure tolerance 4%, protect from ultraviolet radiation

Галерия

Обекти

Обектите, показани тук, са само част от възможни приложения и може да се различават в детайли от директиви нашите обработка.

Аксесоари
guttabeta cover profile
for covering the upper
edge of the dimpled membrane, brown
Length 2000 mm
Width 80 mm
Height 15 mm
guttabeta PE assembly head
for attachment to the dimpled
membrane using steel nails
upper width 7mm,
lower width 16 mm,
borehole ø 3 mm
guttabeta PE assembly dowels
for attachment to guttabeta vlies and vlies plus
Lenght 80 mm
Plate ø 53 mm
Butyl tape, black
for attachment to the dimpled membrane in the overlapping area
Length 15 m
Width 15 mm
guttabeta PT профил
за фиксиране на guttabeta PT лист с мазилката
