guttagliss acrylglas

The freeze-proof, heat-resistant and UV-resistant decorative sheets with smooth or structured surface.
Описание на продукта

Properties
  • freeze-proof and heat-resistant
  • UV-resistant
  • highly fracture-resistant
  • doesn’t splinter or crack
  • high transparency
  • easy to process
  • inexpensive
Application examples
  • Balcony panelings
  • Vision and wind guards
  • Side panelings for canopies, roofed-in areas
  • Shower partitions
  • Glazings
  • Partition walls
  • ... and your own ideas

guttagliss acrylglas is highly UV-resistant, extremely weather-resistant and has therefore a long lifetime. It has an excellent brilliance and high transparency.

These excellent properties result in a high-quality material which can be used for many purposes in the exterior. Balcony panelings, glazings, vision and wind guards, side panelings for canopies and many more.

Temperature stability: stability from -30 up to + 75°C.

Технически данни
Thicknesses
Smooth: 2 to 6 and 8 mm / Opal: 3mm
Structured: Crystal: 3 and 6 mm
All other structured sheets: 6 mm
Colours
Clear, bronze and opal
Sizes
Standard size: 950 x 1,900 mm
* also in special sizes: 1,500 x 2,000 mm
Special formats
Precut sizes on request
Expansion
0.07 mm/m/Δ°C
0.07 mm x product length x temperature range
Thermal stability
- 30°C to + 75°C
Fire classification
DIN 4102 B2
Галерия

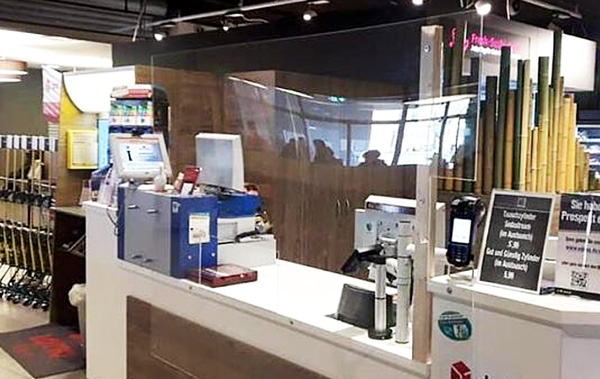

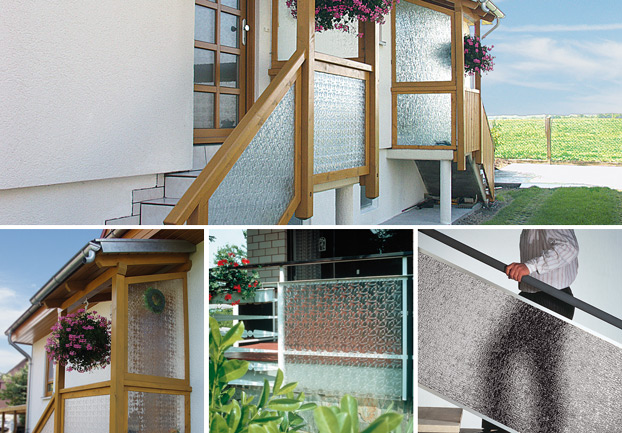

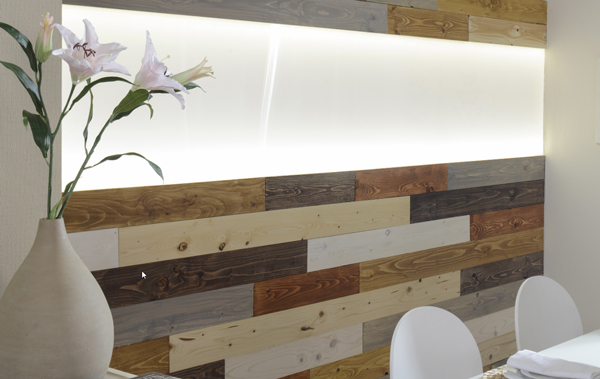

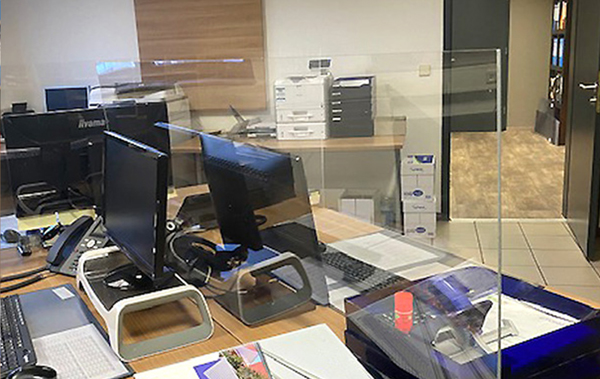

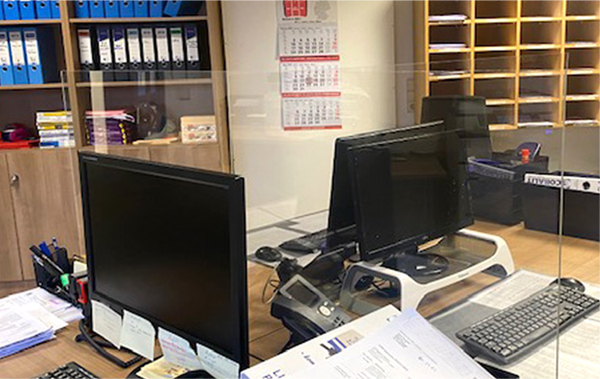

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Преглед на продуктите
Illustration
Strukture
Colors
Thickness
Dimensions

smooth extruded

clear

2,0 mm
3,0 mm
4,0 mm
5,0 mm
6,0 mm
8,0 mm
10,0 mm
950 x 1900 mm
1520 x 2050 mm

smooth extruded

bronze

3,0 mm
5,0 mm
6,0 mm
950 x 1900 mm
1520 x 2050 mm

smooth

opal 32*, opal 64*

3,0 mm
950 x 1900 mm
1520 x 2050 mm

Soft tone satin cast

white

3,0 mm
1520 x 2050 mm

Soft tone satin cast

blue

3,0 mm
1520 x 2050 mm

Soft tone satin cast

green

3,0 mm
1520 x 2050 mm

Crystal extruded

clear

3,0 mm
950 x 1900 mm
1520 x 2050 mm

Coarse crystel extruded

clear

6,0 mm
950 x 1900 mm

Coarse crystel extruded

bronze

6,0 mm
950 x 1900 mm

Pyramid extruded

clear

6,0 mm
950 x 1900 mm

Volute extruded

clear

6,0 mm
950 x 1900 mm

Bark extruded

clear

6,0 mm
950 x 1900 mm

Bark extruded

bronze

6,0 mm
950 x 1900 mm

Tree bark extruded

clear

6,0 mm
950 x 1900 mm

Tree bark extruded

bronze

6,0 mm
950 x 1900 mm

* Extruded light transmission 32 - 36%
** Cast light transmittance about 64 - 70%

=structured on both sides

Аксесоари
aluline U profile
Elegant aluminum profile, silver anodized
for bordering, framing, ends and much more
Length 2000 mm
aluline H profile
Elegant aluminum profile, silver anodized
for vertical and horizontal connections, division of areas and much more
Length 2000 mm
aluline corner profile
Elegant aluminum profile, silver anodized
for corner connections in any direction
Length 2000 mm
aluline profile gasket
compatible with all aluline profiles
Length 2000 mm
aluline corner connector
compatible with all aluline profiles
Guarantee

On our guttagliss acryl glass flat, we will offer 10 years warranty as of the date of sale, against damage due to weather conditions and hail stones, and above average loss of translucency.

The complete terms of warranty, especially the pre-requisites and limitations can be found in our downloads' section under the relevant product.

The terms of warranty can be sent in printed form.
