guttagliss polystyrene sheets flat

Smooth or structured sheets for creative ideas give an atmosphere to the whole interior.
Описание на продукта

Properties
  • many decorations
  • highly fracture-resistant
  • doesn’t splinter or crack
  • high transparency
  • easy to process
  • good thermal stability
  • inexpensive
Application examples
  • Room dividers
  • Door panels
  • Window rows
  • Shower partitions
  • Furniture glazings
  • Display cases
  • ... and your idea

guttagliss polystyrene sheets consist of a high-grade thermoplastic that is sturdy and can take severe knocks. The material is resilient, can be shaped when warm and does not shatter. The breaking strength is about 10 times that of normal glass of the same thickness.

guttagliss polystyrene sheets are also characterized by a very high light transmission ratio (up to 93%) and a considerable multiplicity of decorative structures.

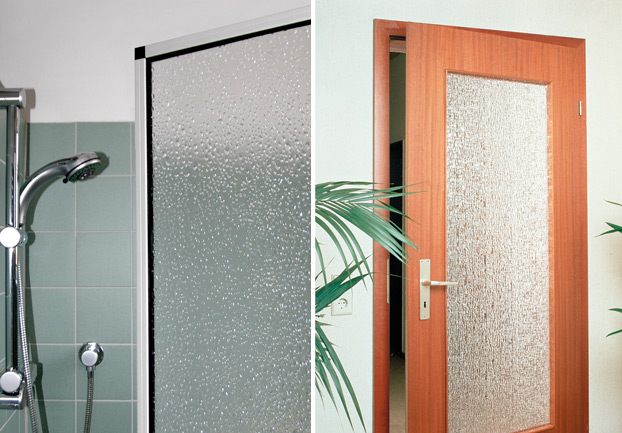

Due to their outstanding product characteristics, guttagliss polystyrene sheets are extremely versatile and are suitable throughout the interior. Proven applications are, for example, partitioning a room into a dining and living area, door fillings, glazing of cupboards and shelving or also as partitions in the sanitary area (shower glazing). For outdoor use, we recommend using guttagliss acrylic glass sheets.

Технически данни
Structures
Smooth, crystal, opal, bark, coarse bark, pyramid, droplet, antique, marble, honeycomb, chinchilla
Sizes
50 x 100 cm, 100 x 100 cm, 100 x 200 cm
Dimensions door cuts
142 x 66 cm (Door leaf 98,5 cm)
142 x 53,5 cm (Door leaf 86 cm)
142 x 41 cm (Door leaf 73,5 cm)
Door leaf are not available in all structures, and only 5 mm thick!
Thicknesses
2,5 mm and 5 mm
Colors
clear, bronce and white (marble)
Extension
0,08 mm/m°C
Product length x 0.08 mm x Temperature Range
Temperature stability
heat-resistant up to: + 75°C
Галерия

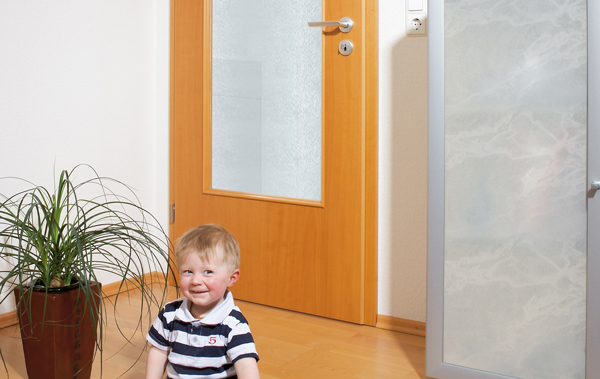

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Преглед на продуктите
Illustration
Structures
Colors
Thickness
Dimensions

smooth

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

smooth

bronce

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

smooth

opal (translucently)

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

crystal

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

marble

clear

2,5 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

bark

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

bark

bronce

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

coarse bark

clear

5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

coarse bark

bronce

5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

pyramid

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm*
*(nicht in 2,5 mm)

droplet

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

antique

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

honeycomb

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

chinchilla

clear

2,5 mm
5,0 mm
500 x 1000 mm
1000 x 1000 mm
1000 x 2000 mm

= available as a door filler = structured on both sides

Аксесоари
aluline U profile
Elegant aluminum profile, silver anodized
for bordering, framing, ends and much more
Length 2000 mm
aluline H profile
Elegant aluminum profile, silver anodized
for vertical and horizontal connections, division of areas and much more
Length 2000 mm
aluline corner profile
Elegant aluminum profile, silver anodized
for corner connections in any direction
Length 2000 mm
aluline profile gasket
compatible with all aluline profiles
Length 2000 mm
aluline corner connector
compatible with all aluline profiles
Doorfix soft
Door frame profile for door blanks
6 mm wide x 5 m long x up to 2 mm thick
self-adhesive, for fitment of door blanks.
Prevents irritating creaks and rattles.
Door frame profile
Length 4.2 m, sealing and edge profile of transparent
soft plastic for fitment of door blanks.
Guarantee

Warranty according to German Civil Code. Subject to colour and size deviations, etc., within the usual tolerances. Our recommendations do not exempt you from your obligation to check the product in a responsible manner. In the event of doubt, please use the services of an expert consultant. All data and diagrams according to the manufacturer’s details.
