guttagliss acryl sz profile sheets 1,5 mm

The impact-and shatter-proof with smooth pore-free surface
Описание на продукта

Properties
  • acryl with elastomer
  • weather-resistant
  • non-porous surface
  • impact-resistant
  • brilliant surface
  • durable
Application examples
  • Roof material
  • Terrace roofing
  • Paneling
  • Window rows
  • Pergolas, Carports
  • Homemade inputs
  • ... and your ideas

guttagliss acryl sz corrugated sheets are for the highest demands where the appearance, rigidity and durability are concerned and are the clearest and most brilliant variant.

guttagliss acryl sz corrugated sheets are manufactured from acrylic (PMMA) and a special elastomer additive. This additive produces a high resistance to impact and good resistance to breakage. The simple assembly and durable transparency are additional advantages of the corrugated sheets.

Due to the shiny, pore-free surface, there is a lower level of dirt adhesion than on other glazing materials; consequently, guttagliss acryl sz corrugated sheets are virtually maintenance-free.

Технически данни

Profiles
Sinus 76/18
Trapez 76/18
Color
clear, bronce
Structure
smooth, rippled (only clear)
Sheet lengths in mm
2000, 2500, 3000, 3500, 4000, 5000, 6000
Sheet widths in mm
1045
Covering width in mm
970
Thicknesses in mm
1,5
Extension
0,08 mm/m/K (23 bis 80°C)
Bending Radius
min. 4000 mm
Transparency (smooth)
ca. 93% clear
Temperature resistance
- 20° up to + 70°C
Fire class DIN 4102
B2

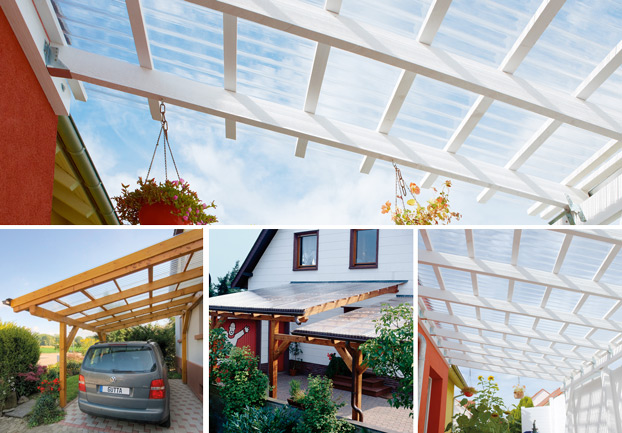

Галерия

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Аксесоари
Screws for acryl sheets
6 x 50 mm, galvanized
with seal
and accompanying cap
seal ø 19.6 mm on the outside
Pipe hook M6
1/2“, galvanized with nut/cap
3/4“, galvanized with nut/cap
1“, galvanized with nut/cap
seal on the outside
ø 20,8 mm
Sinus spacer
transparent
for profile 76/18
Trapezoid spacer
transparent
for profile 70/18 and 76/18
Sinus profile sealing ledges
Sinus 76/18
Length 76 cm
white
Trapezoid profile sealing ledges
Trapezoid 76/18 and 70/18
Length 76 cm
Silver duct tape
Self-adhesive
60 mm x 50 m
Plastic quick helix drill
HSS, stepless,
with laser scaling
from 4 - 14 mm
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Guarantee

On our guttagliss acryl sz corrugated sheets 1,5 mm, we will offer 30 years warranty as of the date of sale, against damage due to weather conditions and hail stones, and above average loss of translucency.

The complete terms of warranty, especially the pre-requisites and limitations can be found in our downloads' section under the relevant product.

The terms of warranty can be sent in printed form.
