guttagliss makro

Made of polycarbonatethe problem-free and durable profile sheets with special weather protection
Produkt

Properties
  • Standard quality
  • Polycarbonat (PC)
  • impact-resistant, hailstone-resistant
  • good UV protection, high transparency
  • durability
  • temperature-resistant
Application examples
  • Roof material
  • Paneling
  • Shelters
  • Pergolas
  • Carports
  • ... and your ideas

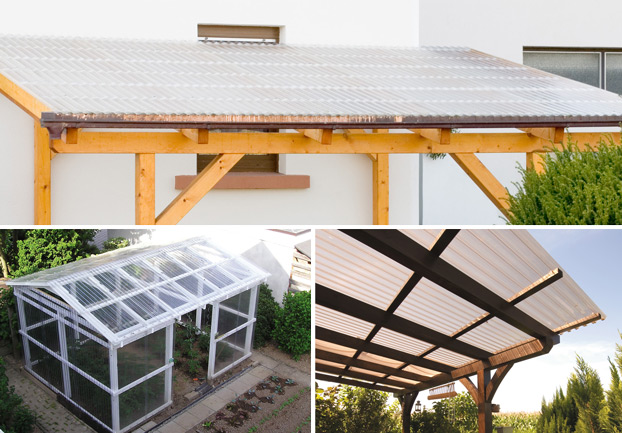

guttagliss makro profile sheets made of polycarbonate are the right choice for you if you are thinking about durable roofing solutions for a pergola, balcony, carport, or anything similar. The sheets are also well-suited for window rows and paneling.

The profile sheets are co-extruded (additional, long-term surface protection against UV rays) and are highly weather-resistant.

guttagliss makro sheets are impact-resistant, hailstone-resistant and easy to work with.

Technische Daten

Profiles
Sinus 76/18
Trapez 76/18
Color
clear, bronce
Sheet lengths in mm
2000, 2500, 3000, 3500, 4000, 5000, 6000
Sheet widths in mm/effective width
Sinus und Trapez 1040/970
Temperature lastingness
from-40 ° to +120°C
Fire class
DIN 4102 B1
Галерия

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Аксесоари
Roof screws
4.5 x 45 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Screws V2A
4.5 x 45 mm
high-grade steel, stainless
with universal seal
seal ø 20 mm on the outside
Pipe hook M6
1/2“, galvanized with nut/cap
3/4“, galvanized with nut/cap
1“, galvanized with nut/cap
seal on the outside
ø 20,8 mm
Wall screws
5 x 25 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Sinus spacer
transparent
for profile 76/18
Trapezoid spacer
transparent
for profile 70/18 and 76/18
Sinus profile sealing ledges
Sinus 76/18
Length 76 cm
white
Trapezoid profile sealing ledges
Trapezoid 76/18 and 70/18
Length 76 cm
Silver duct tape
Self-adhesive
60 mm x 50 m
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Plastic quick helix drill
HSS, stepless,
with laser scaling
from 4 - 14 mm
Guarantee

On our guttagliss makro profile plates, we will offer 10 years warranty as of the date of sale, against damage due to weather conditions and hail stones, and above average loss of translucency.

The complete terms of warranty, especially the pre-requisites and limitations can be found in our downloads' section under the relevant product.

The terms of warranty can be sent in printed form.
