guttagliss polyester

Transparent tracks and sheetsthe inexpensive and nearly indestructible composite material
Produkt

Qualities
  • Basic quality
  • glass-fiber reinforced plastic
  • inexpensive
  • weather-resistant
  • comes in corrugated or flat sheets
  • sturdy
  • durable
  • indestructible

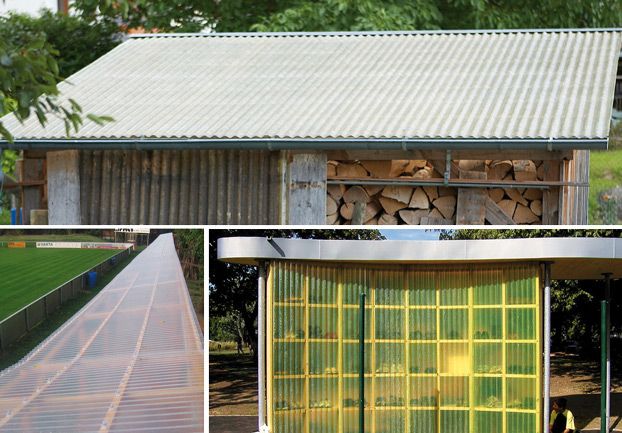

Application examples
  • Roofing material
  • Paneling
  • Agriculture
  • Sheds and Shelters
  • Open canopies
  • Transparent corrugated sheets for diverse roof sheet profiles
  • ... and your idea

guttagliss polyester is a glass-fiber reinforced composite material that has been used as a roofing and paneling material for more than 30 years. Though flat tracks are only suitable for use in a vertical position.

his inexpensive building material is especially characterized by its weather resistance, which includes good UV stability. The polyester is robust, transparent as well as being glare-free and has excellent resistance to ageing.

Polyester can be processed cost effectively and without problems. Due to the glass-fibre insert, polyester is not clear.

Polyester corrugated sheeting is not suitable for laying side by side.

For the guttagliss Ployer warranty applies to the Civil Code. The transparency and the flexibility of the panels shall, within the warranty period, depending on the weather affects more or less.

Color and size variations, etc. within the usual tolerances reserved. They note that local building codes. Our recommendations are not exempt from the obligation to verify independently the product. If in doubt, please take advantage of a professional consultation.

Technical changes reserved.

Technische Daten

Rolls

Profile
Color
Width
Length
sinus 76/18
natur
a*
Up to 3,0 m wide = 30 m
sinus 76/18
yellow
b*
over 3,5 m wide = 20 m
sinus 76/18
green
c*
** only natur
Flat
natur
c*

*a = 800, 900, 1000, 1250, 1500, 1800, 2000, 2500, 3000, 3500, 4000 mm
*b = 1000, 1500, 2000 mm
*c = 1000, 1250, 1500, 2000, 2500 mm

Sheets

Profile
Color
Width/Effective width
Length
sinus 76/18
natur
1000 mm/920 mm
*A
P8, sinus 130/30
natur
1000 mm/870 mm
*B
P5, sinus 177/51
natur
920 mm/740 mm
*C

*A = 1600, 2000, 2500, 3000 mm
*B = 1250, 1600, 2000, 2500, 3100, 3300 mm
*C = 1250, 1600, 2000, 2500, 3300 mm

Temperature stability: from - 40°C up to +100°C

Галерия

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Аксесоари
Roof screws
4.5 x 45 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Screws V2A
4.5 x 45 mm
high-grade steel, stainless
with universal seal
seal ø 20 mm on the outside
Wall screws
5 x 25 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Pipe hook M6
1/2“, galvanized with nut/cap
3/4“, galvanized with nut/cap
1“, galvanized with nut/cap
seal on the outside
ø 20,8 mm
Screws P5 / P8
7 x 120 mm, galvanized
with seal
and accompanying cap
seal ø 24 mm on the outside
Sinus spacer
transparent
for profile 76/18
Sinus profile sealing ledges
Sinus 76/18
Length 76 cm
white
Silver duct tape
Self-adhesive
60 mm x 50 m
Plastic quick helix drill
HSS, stepless,
with laser scaling
from 4 - 14 mm
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Guarantee

With our guttagliss pvc profile panels, the warranty applies to the Civil Code. The transparency and the flexibility of the panels shall, within the warranty period, depending on the weather affects more or less.

Color and size variations, etc. within the usual tolerances reserved. They note that local building codes. Our recommendations are not exempt from the obligation to verify independently the product. If in doubt, please take advantage of a professional consultation.

Technical changes reserved.
