guttagliss pvc

The most affordable and proven transparent corrugated sheets with many possibilities of use
Описание на продукта

Properties
  • Basic quality
  • cost-effective
  • sturdy
  • high transparency
Application examples
  • Roofing covers
  • Paneling
  • Window rows
  • ... and your own ideas

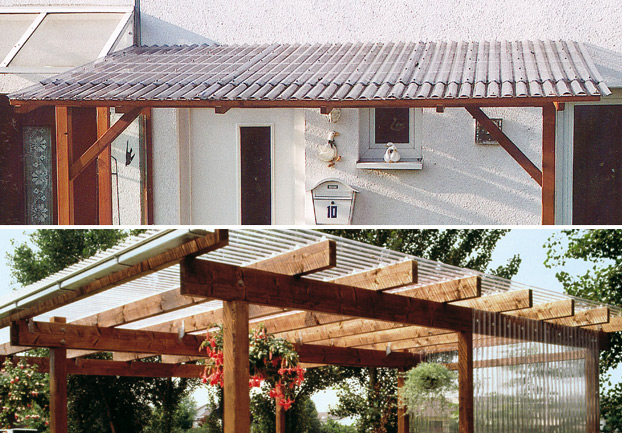

When you choose guttagliss pvc profile sheets, you are making the right choice if you want to set up a proven and affordable solution for covering your pergolas, balconies, a carport or if you want to create a sight or wind protection element.

The sheets are extruded (drawn) and have a good weather resistance, good thermal properties and a smooth, pore-free surface.

guttagliss pvc micro-sinusoidal small corrugation sheets are not suitable for roofings!

Технически данни

Profile
Sinus 76/18
Trapez 70/18
Micro-Sinus* 32/8
P5 Sinus 177/51
P8 Sinus 130/30
(*not suitable for roof cladding)
Colors
Clear, bronze
(Micro-Sinus only in clear)
Sheet lengths in mm
2000, 2500, 3000
Sheet widths in mm
Sinus 900 /820
Trapez 1090 /1020
Micro-Sinus* 750 /710
Thicknesses
Available in 2 versions:
Type 900
Type 1200
Temperature stability:
-20° to +60° C
Elongation at break
20 – 100 %
Flexural radius min.
2800 mm
Light transmission ratio
clear > 80 %
Chemical stability
Fulfilled according to DIN 16929
Fire classification
DIN 4102 B1

* only available in clear

Галерия

Обектите, показани тук са само впечатления от възможните приложения и може да се различават в детайли от изискванията за вашето приложение.

Аксесоари
Roof screws
4.5 x 45 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Screws V2A
4.5 x 45 mm
high-grade steel, stainless
with universal seal
seal ø 20 mm on the outside
Pipe hook M6
1/2“, galvanized with nut/cap
3/4“, galvanized with nut/cap
1“, galvanized with nut/cap
seal on the outside
ø 20,8 mm
Wall screws
5 x 25 mm, galvanized
crosshead with seal
and accompanying cap
seal ø 19.6 mm on the outside
Sinus spacer
transparent
for profile 76/18
Trapezoid spacer
transparent
for profile 70/18 and 76/18
Sinus profile sealing ledges
Sinus 76/18
Length 76 cm
white
Trapezoid profile sealing ledges
Trapezoid 76/18 and 70/18
Length 76 cm
Silver duct tape
Self-adhesive
60 mm x 50 m
Plastic quick helix drill
HSS, stepless,
with laser scaling
from 4 - 14 mm
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Socket Wrench
3/8" head
Cordless screwdriver suitable



Sinus 76/18 wall connector
transparent, for connecting top wall
990 x 150 x 50 mm
Trapezoid 70/18 wall connector
transparent, for connecting top wall
990 x 150 x 50 mm
Sinus 76/18 wall connector
transparent
for connecting side wall
990 x 130 x 50 mm
Trapezoid 70/18 wall connector
transparent
for connecting side wall
1090 x 130 x 50 mm
Guarantee

With our guttagliss pvc profile panels, the warranty applies to the Civil Code. The transparency and the flexibility of the panels shall, within the warranty period, depending on the weather affects more or less.

Color and size variations, etc. within the usual tolerances reserved. They note that local building codes. Our recommendations are not exempt from the obligation to verify independently the product. If in doubt, please take advantage of a professional consultation.

Technical changes reserved.
