guttagliss paneel

Transparent sheet elements made of PVC - the inexpensive choice for frameless window rows
Описание на продукта

Properties
  • inexpensive
  • sturdy
  • easy to install
  • low weight
  • Fire class: B 1
  • provides good insulation
  • high sound absorption
Application examples
  • Vision and wind guards
  • Window panels
  • Panelings
  • Window rows
  • small greenhouses
  • ... and your idea

guttagliss paneel transparent sheet elements are the right choice for you, if you want to install inexpensive, frameless rows of windows with attractive appearance.

guttagliss paneel transparent sheet elements are suitable for a wide variety of uses, and thanks to their small element width and their groove and spring insertion system, they are very easy to handle and to install. For edge areas or for reinforcement, system compatible aluminum profiles are used.

Other product advantages are the low weight which goes together with a high inherent stiffness and very good insulation properties.

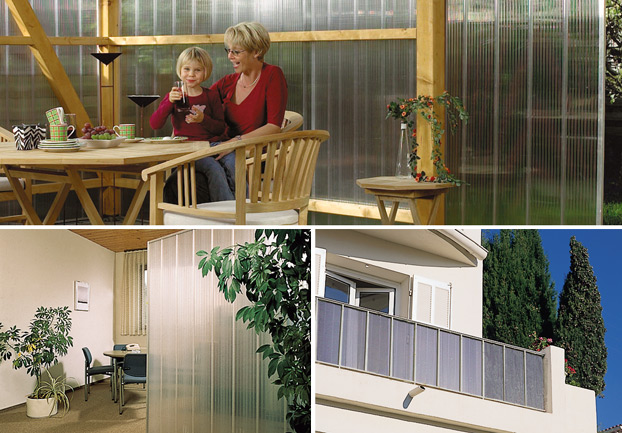

guttagliss paneel transparent sheet elements can be used anywhere where visibility and protection are required, but where direct transparency is not desired. Areas of application are, for example, wind protection and screened walls for terraces or balconies, but also panelings for a pergola, a carport or wood constructions. These easy-to-handle panels are also best suited for vertical window rows, room dividers or backlit light covers for home interiors.

guttagliss paneel transparent sheet elements made of PVC do not have a rain-proof joint! As a result, they are not suitable for roofings. For this purpose, we recommend our guttagliss easy-click panels made of polycarbonate for roof and walls.

Технически данни

Thickness in mm
16 mm
Lengths in mm
2000, 2500, 3000
Breite in mm
200
Weight kg/m²
ca. 2,9
Chamber width in mm
28
K-value W/m² °C
2,8
Transparency
about 75% clear
about 60 % bronce
Temperature stability
-20°C up to + 60°C
Fire class
DIN 4102 B1
Галерия

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Аксесоари
Aluminum U profile 16 mm
high grade aluminum profile
silver anodized
for panel ends
Width: 24 mm
Height: 19 mm
Aluminum U profile 16 mm with mounting strap
– across –
High grade aluminum profile
silver anodized
for panel attachment on the roof edge
Aluminum H profile 16 mm
High grade aluminum profile
silver anodized
for panel connections in the wall, across the hollow chamber
Aluminum U profile 16 mm
with mounting strap
– lengthwise –
High grade aluminum profile
silver anodized
for the most diverse panel attachments
Aluminum corner profile 16 mm
high grade aluminum profile
silver anodized
for the most divers panel corner connections
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Guarantee

A warranty according to the German Civil Code is provided for our guttagliss PVC panels. The transparency as well as the flexibility of the panels decreases by a varying extent during the warranty period due to the effect of the weather.

Subject to colour and size deviations, etc., within the usual tolerances. Please comply with the local building regulations. Our recommendations do not exempt you from your obligation to check the product in a responsible manner.

In the event of doubt, please use the services of an expert consultant. Subject to technical alterations.
