guttagliss acryl sz

The brilliant and impact resistant panels with good insulating characteristics
Описание на продукта

Qualities
  • Highest transparency and brilliance
  • Best static characteristics
  • Best UV stability
  • Excellent weather resistance
  • Various types
  • UV permeable
  • Not bendable
  • Best plant growth
  • Very good insulating characteristics
Application examples
  • Roofing
  • Wall panelling
  • Patio roofing
  • Winter gardens
  • Pergolas
  • Carports
  • ... and your ideas

guttagliss acryl sz double web panels

are made from polymethyl methacrylate (PMMA) and a special elastomer additive. This additive produces high impact resistance and good shatterproofing. We recommend 16 mm thick acryl sz double web panels for properties with the highest demands for appearance and durability. Simple fitting and permanent transparency are the additional advantages of these panels. acryl sz double web panels allow the biologically important proportion of UV radiation to pass through, which is especially important for the growth of your plants. The adhesion of dirt is hindered by the high gloss, pore-free surface – consequently, acryl sz double web panels are virtually maintenance-free.

guttagliss acryl sz double web panels

are additionally available in special designs with exceptional product characteristics.

guttagliss acryl sz panorama

Through the extremely wide hollow chambers (96 mm), acryl sz panorama achieves a previously unattainably high transparency.

guttagliss acryl sz heatplus

The special coating of acryl sz heatplus reflects the rays of the sun and thus produces a considerably lower level of heat during the summer. Good thermal insulation in the winter is retained.

Технически данни

plate acryl

Thickness in mm
16
Lengths in mm
2000, 2500, 3000, 3500, 4000, 5000, 6000
Widths in mm
980, 1200
Hollow chamber widths in mm
32
Colors
clear, bronce, opal-white
Weight kg/m
ca. 4,0
U-value W/m² K
2,7
Transparency
clear approx.88%
bronce approx. 75%
opal-white approx. 62%
Max. use temperature
-20°C bis +70°C
Stretch coefficient mm/m°C*
0,06
Cold bending radius mm/min.
not bendable
UV protection
on both sides
Fire class DIN 4102
B2

plate panorama

Thickness in mm
16
Lengths in mm
2000, 2500, 3000, 3500, 4000, 5000, 6000
Widths in mm
980, 1200
Hollow chamber widths in mm
96
Colors
clear
Weight kg/m
4,7
U-value W/m² K
2,7
Transparency
clear ca. 88%
Max. use temperature
-20°C up to +70°C
Stretch coefficient mm/m°C*
0,06
Cold bending radius mm/min.
not bendable
UV protection
on both sides
Fire class DIN 4102
B2

plate heat plus

Thickness in mm
16
Lengths in mm
2000, 2500, 3000, 3500, 4000, 5000, 6000
Lengths in mm
980
Hollow chamber widths in mm
32
Colors
opal-white
Colors
4,0
U-value W/m² K
2,4
Transparency
opal-white ca. 62 %
Max. use temperature
-20°C up to +70°C
Stretch coefficient mm/m°C*
0,06
Cold bending radius mm/min.
not bendable
UV protection
on both side
Fire class DIN 4102
B2

*Formula for calculation of elongation/shrinkage:

Coefficient of linear extension x sheet length in m x temperature
difference in °C = Thermal expansion/shrinkage in mm

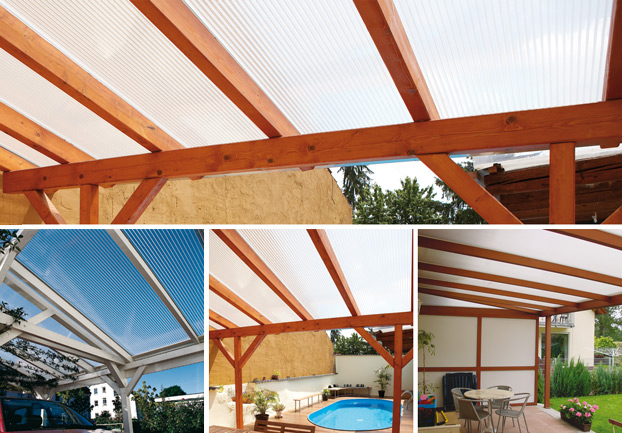

Галерия

The objects shown here are only impression of possible applications and can deviate in details from our processing directives.

Аксесоари
durotop 10 mm center profile
(two parts)
made of plastic, white
(window profile quality)
with sprayed sealing lips
Width: 69,5 mm
Height: 20,5 mm
durotop 10 mm edge profile
made of plastic, white
(window profile quality)
with sprayed sealing lips
Width: 41,5 mm
Height: 20,5 + 5 mm (drip edge)
durotop 10 mm end profile
made of plastic, white
(window profile quality)
with sprayed sealing lips
Width: 41,5 mm
Height: 20,5 + 5 mm (drip edge)
PVC Clamping Profile Center
for 10 or 16 mm plates
with drawn-in light-grey sealing lips and 1 PVC upper part, white/silver
Width: 61 mm,
Height: 28/35 mm
PVC Clamping Profile Edge
for 10 or 16 mm plates
with drawn-in light-grey sealing lips and 1 PVC upper part, white/silver
Width: 62 mm
Height: 28/35 mm
PVC Upper Part
for 10 or 16 mm plates, white
Width: 61 mm
Height: 14 mm
durotop end angle
for durotop 10/16 center profile
made of white plastic
2 parts including 2 screws
Length: 80 mm
Curved Angle and Angle Bracket
made of aluminum 10 or 16
half-round, white powder-coated
62 x 56 x 41 mm
Aluminum Universal Profile
with 2 integrated white
sealing lips, silver
Width: 61 mm
Height: 10,5 mm
Also for genuine glass suitably
Aluminum Cover Profile Center
for 16 mm plates with 2
light-grey, drawn-in
sealing lips and 1 pad rubber, silver
Width: 61 mm
Height: 28,5 mm
Aluminum Cover Profile Edge
for 16 mm plates with 1
light-grey, drawn-in
sealing lips and 1 pad rubber, silver
Width: 61 mm
Height: 28,5 mm
Pad Rubber, Light Grey
EPDM, self-adhesive, simply fix upon plate rest on sub-construction
Pad Rubber Extra
light-grey, self-adhesive, for glass
Width: 61 mm
Alu Screw Profile Center
for 16 mm plates with 4 light-grey,
drawn-in sealing lips and screw conduit, silver
Width: 61 mm
Height: 33 mm
Alu Screw Profile Edge
for 16 mm plates with 3 light-grey,
drawn-in sealing lips and screw conduit, silver
Width: 61 mm
Height: 33 mm
Sealing Lip
light-grey, rubber
Aluminum U profile with drip mold, 16 mm
semimachined for the lower sheet fastener for 16 mm sheet thickness
Alu Ornamental Clamp Cover
matching the screw, cover and thermoplus profile,
white powder coating
Width: 63 mm
Height: 16,4 mm
Alu Ornamental Clamp Cover
matching the screw, cover and thermoplus profile
silver anodized
Width: 63 mm
Height: 16,4 mm
Ridging Profile
with 2 drawn-in
light-grey sealing lips
Side length: 80 mm
Width: 160 mm
Height: 40 mm
Aluminum wall connector
semi-machined
for flexible wall connections
with light gray sealing lip
with about an 8-18 degree incline
Silver duct tape
Self-adhesive
60 mm x 50 m
Special silicon
310 ml cartridge
for sealing and bonding
compatible with plastic
Edge closing band
Self-adhesive, 38 mm x 15 m
silver with membrane
Socket Wrench
3/8" head
Cordless screwdriver suitable



High-Grade Steel Screws
Recessed head, 4,2 x 16 mm
to fix lower part upon metal sub-construction
High-Grade Steel Screws
Recessed head, 4,5 x 35 mm
to fix lower part upon wooden sub-construction
High-Grade Steel Screws
3/8" head, 6,3 x 32 mm
with neoprene sealing
to fix lower part upon metal sub-construction
High-Grade Steel Screws
3/8" head, 6,5 x 64 mm
with neoprene sealing
to fix upper part upon profile lower part
End angle and holding angle
Aluminum, semi-machined
Dimensions: 45 x 60 x 60 mm
Guarantee

On our guttagliss acryl sz double web panels, we will offer 20 years warranty as of the date of sale, against above average loss of translucency and we will offer 10 years against damage due to weather conditions and hail stones.

The complete terms of warranty, especially the pre-requisites and limitations can be found in our downloads' section under the relevant product.

The terms of warranty can be sent in printed form.
